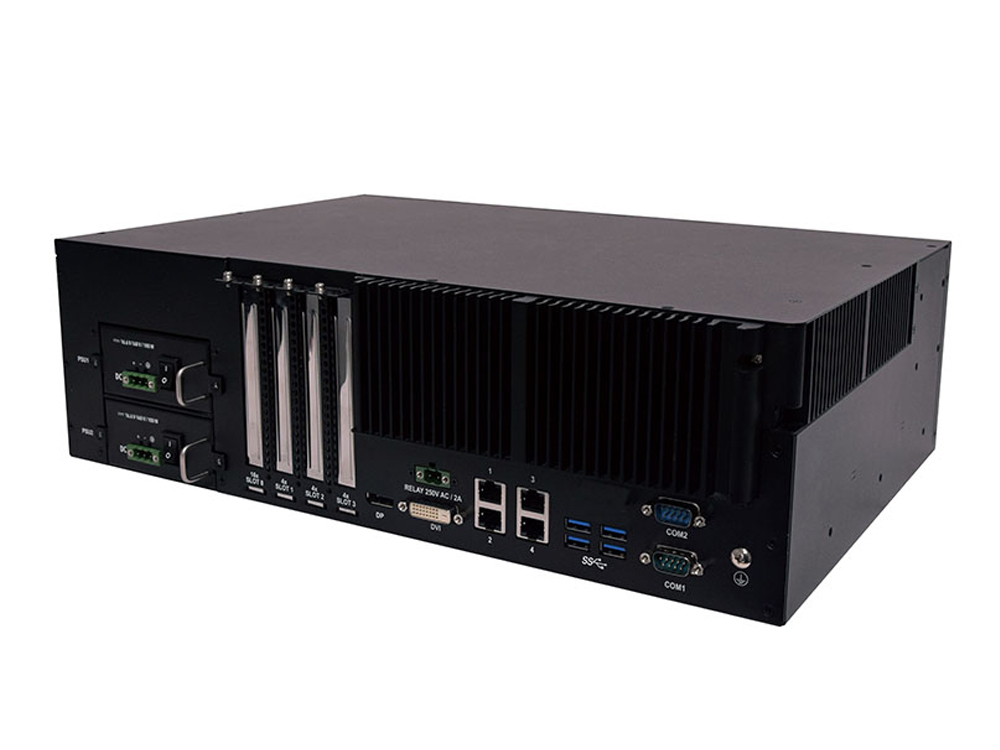

LEC-3340
IEC 61850-3标准的3U机架式变电站控制器系统
- 符合IEC 61850-3和IEEE 1613标准
- 支持Intel®Xeon®E3-1505L V6或i5-7442EQ CPU(代号Kaby Lake-H)
- 丰富I/O: 4个PCIe插槽，4个GbE RJ45接口，5个USB 3.0插槽，2个2.5”可插拔插槽
- 支持2个SO-DIMM DDR4 ECC内存，最大32GB
- 无风扇设计与波纹铝
- 可选的TPM 2.0支持
LEC-3340为3U机架式工业边缘整合服务器，由Intel®Xeon®E3-1505L V6 or Core™i5-7442EQ(原Kaby Lake-H)处理器提供卓越的性能。LEC-3340符合IEC-61850和IEEE1613，提供丰富的I/O功能，包括4个PCIe插槽，4个RJ-45 GbE LAN接口，5个USB 3.0接口，2个2.5”可交换驱动槽，DP/DVI显示端口，和2个隔离COM端口。
产品规格
| Platform | |
| CPU | Intel® Xeon® E3-1505L V6 or Core i5-7442EQ CPU |
| Chipset | Intel® CM238 |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR4 ECC |
| Memory Capacity | 32 GB |
| Memory Socket | 2 x 260-pin SODIMM |
| Storage | |
| SATA storage | 2 x 2.5” Swappable HDD/SSD drive bay support RAID0,1 |
| I/O | |
| Ethernet controller | Intel® I210IT |
| Graphic controller | Intel® Xeon® E3-1505L V6: HD Graphics P530 |
| Default LAN | 4 x 1000Base-T GbE RJ45 ports |
| Magnetic Isolation Protection | 2KV Digital Isolation |
| Display output | DP, DVI-D |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Serial ports | 2 x DB9 Male (COM1/COM2) on board with isolation supports software selectable RS-232/422/485 |
| Serial ESD protection | 15KV ESD Protection |
| USB 3.0 | 5 x Type A |
| TPM | TPM 2.0 Optional |
| Power and Mechanical | |
| Power input | Redundant 16.6-160VDC x2 AC 100~240 Vac option |
| Expansion | 1 x PCIe x16, 3 x PCIe x4 slots |
| OS and Certifications | |
| Operating System | Windows 10 Embedded, Kernel 2.6, Ubuntu |
| Certifications | CE, FCC ClassA, UL(compulsory), IEC 61850-3, IEEE 1613 |
| Physical and Environmental | |
| Storage temperature | -40°C to 85°C |
| Operating temperature | -40°C to 70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 438 mm x 131.8 mm x 300.1 mm (17.24" x 5.19" x 11.81") |
| Weight | 8.5 kg (18.7 lbs) |
| Watchdog | Watchdog timer 256 level time interval system reset, software programmable |
| Casing material | Aluminum + Steel |
订购信息
| LEC-3340A | 支持Intel®Xeon®E3-1505L V6 CPU，双电源模块AC+DC |
| LEC-3340B | 支持Intel®Xeon®E3-1505L V6 CPU，双电源2xDC |
| LEC-3340C | 支持Intel®Core i5-7442EQ CPU，双电源模块AC+DC |
| LEC-3340D | 支持Intel®Xeon®E3-1505L V6 CPU，无电源 |
| LEA-PB3340A | 电源套件直流16.6~ 160v, 100w |
| LEA-PB3340B | 电源套件ac 100~ 240v, 200w |
All product specifications are subject to change without prior notice
