NCA-6520

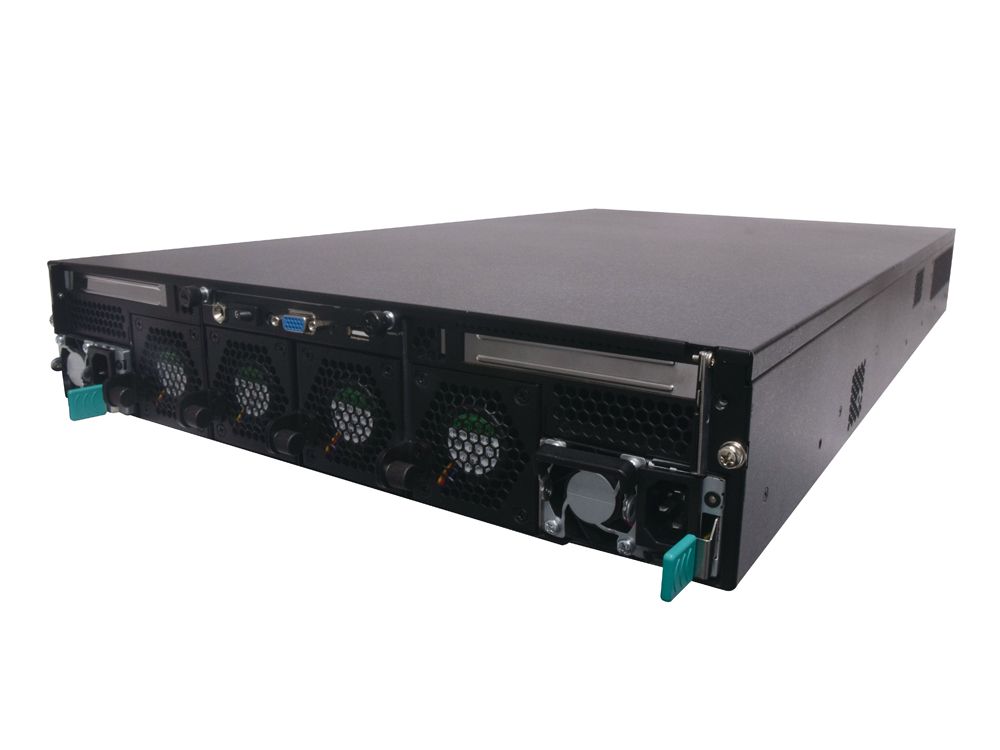

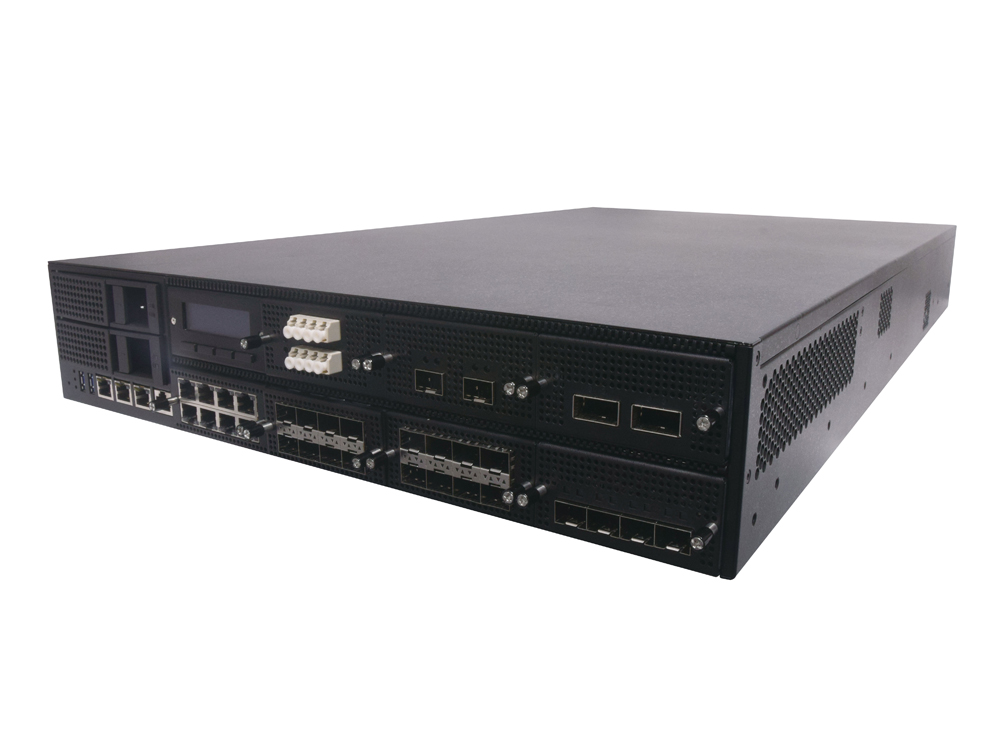

2U 19" Rackmount网络设备内置第三代Intel®Xeon®可扩展处理器(代号Ice Lake SP)
- 双第三代Intel®Xeon®可扩展处理器，支持PCIe 4.0
- 24 * DDR4内存插槽，支持NUMA，最大1536GB
- 8个网卡槽位，2个GbE RJ45, 1个RJ45 Console, 1个板载网卡，2个USB 3.0
- 2x PCI-E*16 FH/FL (By Project), 3x M.2-2280, M Key
- 100G Intel®QuickAssist技术
- 4x单个热插拔风扇，850W 1+1 ATX冗余电源模块
NCA-6520由第三代Intel®Xeon®可扩展处理器(代号Ice Lake SP)和Intel®C627A芯片组驱动，支持高达1536GB的系统内存和8个网卡模块插槽，用于几乎任何网络接口和I/O配置。其他值得注意的功能包括850W 1+1 ATX冗余电源，2x PCI-E *16, 3个M.2和4个独立的热插拔智能风扇。
产品规格
| Platform | |
| Form Factor | 2U 19” Rackmount |
| Processor Options | 3rd Gen Intel® Xeon® Scalable Processor |
| CPU Socket | 2 x LGA4189 |
| Chipset | Intel® C627A |
| Security Acceleration | Intel® QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR4 2133/2400/2666/2933/3200 MHz R-DIMM / LRDIMM |
| Max. Capacity | 1536GB |
| Socket | 24 x 288-pin REG DIMM |
| Networking | |
| Ethernet Ports | 2 x GbE RJ45 Intel® i350-AM2 |
| Bypass | Depending on NIC Module Specifications |
| NIC Module Slot | 8 |
| LOM | |
| IO Interface | 1 x RJ45 |
| OPMA Slot | IPMI Chip Onboard |
| I/O Interface | |
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | N/A (Optional) |
| Display | 1 x VGA (Internal Pin Header) |
| Power Input | AC Power Inlet on PSU |
| Storage | |
| HDD/SSD Support | 2 x 3.5” or 2.5” Internal Bays |
| Onboard Slots | 3 x M.2-2280, M Key |
| Expansion | |
| PCIe | 2 x PCI-E*16 FH/FL (By Project) |
| mini-PCIe | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM2.0 (Optional) |
| Cooling | |
| Processor | Passive CPU Heatsink |
| System | 4 x Individual Hot-swappable Cooling Fans With Smart Fan |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -20~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 438mm x 720mm x 88mm |
| Weight | 19.3kg |
| Package Dimensions | |
| (WxDxH) | 588mm x 997mm x 250mm |
| Weight | 32kg |
| Power | |
| Type / Watts | 850W 1+1 ATX Redundant PSUs |
| Input | AC 100~240V @47~63Hz |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class A, UL |
订购信息
| NCA-6520A | 可支持2x Ice Lake-SP(270W) / PCH C627A / 2x GbE RJ45 MGMT / AST2500 MGMT，带850W 1+1冗余电源 |
| NCA-6520B | 支持2 × Ice Lake-SP(185W) / PCH C627A / 2 × GbE RJ45 MGMT / AST2500 MGMT, 1300W 1+1冗余电源/支持GPU卡 |
All product specifications are subject to change without prior notice
