云•电信应用平台

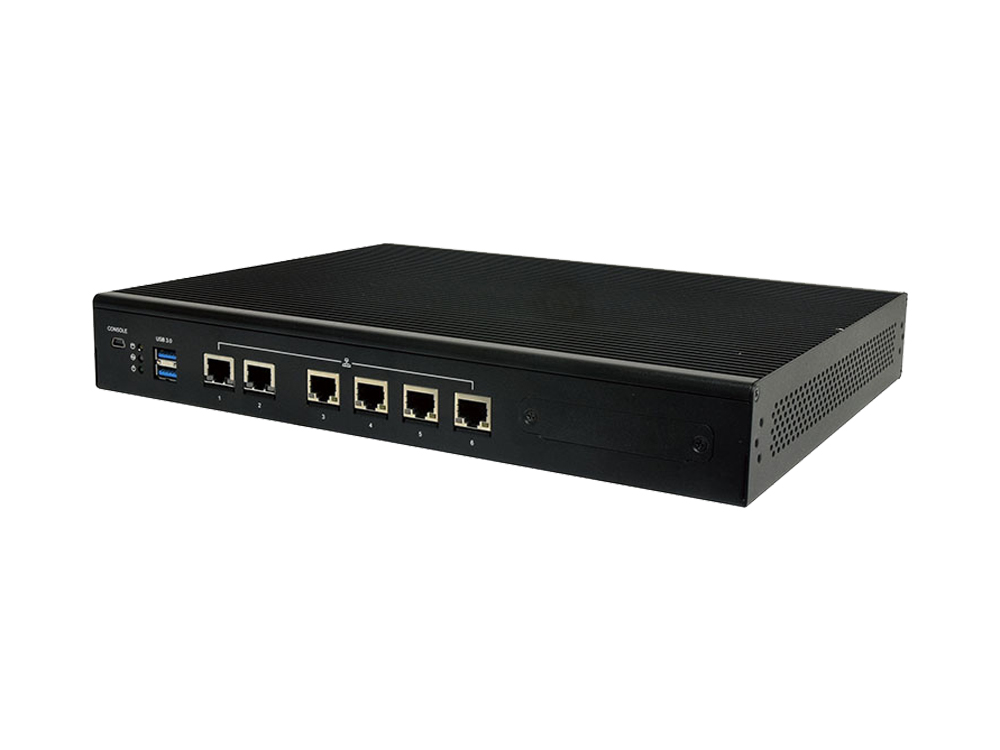

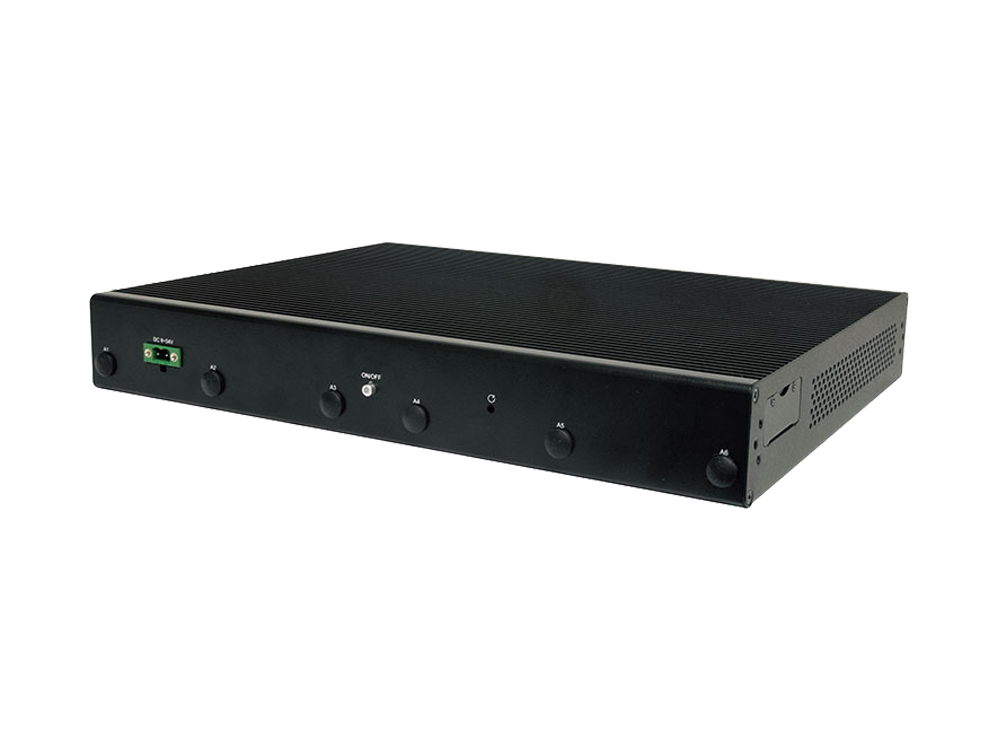

NCR-1510
宽温网络设备Intel®Atom®C3000 (Denverton)
- Intel® Atom® 2~8 Cores C3308/C3508/C3708 CPU (Denverton)
- 4x RJ45, 2x SFP or 2x RJ45 (By SKU), 1 Pair of Gen3 Bypass
- Wide Operating Temperature range: -40~70ºC (SKU C to 60ºC)
- SKU A/D:1x 260-pin SODIMM, SKU B/C/E/F:2x 260-pin SODIMM
- 1x M.2 B key 3042 for LTE, 2242 SSD (signal: USB3.0, SATA) with Nano-SIM
- 2x Mini-PCIe for Wi-Fi,LTE (signal: USB2.0,PCIe) with Nano-SIM
- SKU D/E/F: 1x Optional removable M.2 LTE Caddy
- Intel® QuickAssist Technology up to 10Gbps
- 1x Mini USB Console, 2x USB 3.0 (SKU B/C), 1x 2.5” HDD/SSD Bay (Optional)
- Optional Rack Mounting kit Support
NCR-1510是一款宽温无风扇网络设备，为SD-WAN或uCPE优化。该平台支持在苛刻的环境和关键基础设施中部署SD-WAN服务。NCR-1510由英特尔®Atom®C3000(代号Denverton) CPU驱动，具有稳定的性能和英特尔的QuickAssist技术，运行速度可达10Gbps，在紧凑的外形中提供加密加速和工业级局域网功能。是企业应用于SD-WAN、uCPE或边缘安全网关的最佳无风扇桌面网络设备。
产品规格
| Platform | |
| CPU | Intel® Atom® C3308/C3508/C3708 (Denverton) |
| Chipset | SoC |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR4 up to 2400MHz ECC/non-ECC DIMM |
| Memory Capacity | SKU A/D:1x 260-pin SODIMM, SKU B/C/E/F:2x 260-pin SODIMM |
| Memory Socket | SKU A/D: 32GB, SKU B/C/E/F:64GB |
| Storage | |
| SATA storage | HDD/SSD Support 1 x 2.5” Bay (Optional) |
| I/O | |
| Default LAN | 4 x GbE RJ45 Intel® SoC Integrated MAC 2 x SFP Intel® i210 (By SKU) or 2 x GbE RJ45 Intel i210 |
| Bypass | 1 Pair of Gen3 |
| Console | 1 x Mini USB |
| Security acceleration | Intel® QuickAssist Technology |
| USB 3.0 | 2 x Type A |
| TPM | Onboard TPM 2.0 |
| Power and Mechanical | |
| Power input | 1 x 2-pin terminal block |
| Type/Watt | 12V, 5A |
| Expansion | 1x M.2 B key 3042 for LTE, 2242 SSD with Nano-SIM; 2x Mini-PCIe for Wi-Fi,LTE with Nano-SIM |
| Reset | 1x Reset Button |
| Processor cooling | Passive CPU Heatsink |
| System cooling | Fanless |
| OS and Certifications | |
| Certifications | RoHS, CE/FCC Class A |
| Physical and Environmental | |
| Storage temperature | -20°C to 85°C |
| Operating temperature | -40°C to 70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 310 mm x 44 mm x 240 mm (12.20" x 1.73" x 9.45") |
| Weight | 3 kg (6.6 lbs) |
| Watchdog | Yes |
| Internal RTC | Yes |
订购信息
| NCR-1510A | C3308, 6x GbE RJ45 w/ 1 Pair of Gen3 Bypass |
| NCR-1510B | C3508, 6x GbE RJ45, w/ 1 Pair of Gen3 Bypass |
| NCR-1510C | C3708, 4x GbE RJ45, 2x GbE SFP, w/ 1 Pair of Gen3 Bypass |
| NCR-1510D | C3308, 6x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 1x Optional removable M.2 LTE Caddy |
| NCR-1510E | C3508, 6x GbE RJ45, w/ 1 Pair of Gen3 Bypass, 1x Optional removable M.2 LTE Caddy |
| NCR-1510F | C3708, 4x GbE RJ45, 2x GbE SFP, w/ 1 Pair of Gen3 Bypass, 1x Optional removable M.2 LTE Caddy |
| PGN-300 | 4G LTE Radio Modem with LTE Cat-6 embedded module |
| PGN-600 | 4G LTE-Advanced Pro Radio Modem with LTE Cat-12 embedded module |
All product specifications are subject to change without prior notice
