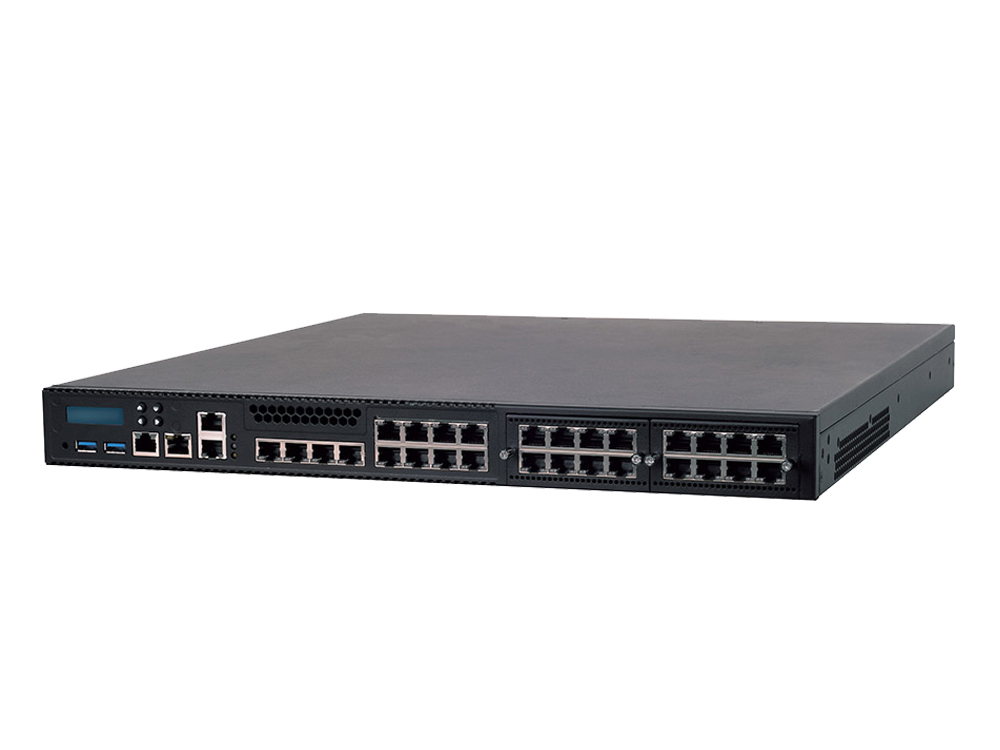

NCR-5520
1U 19 "机架式网络设备，内置Intel® Xeon® E or Core i3 or Pentium or Celeron 处理器(代号Coffee Lake)
- Intel® Xeon® E or Core i3 or Pentium or Celeron Processor (Codenamed Coffee Lake)
- 8x GbE RJ45 (SKU A), 4x GbE RJ45 or 4x GbE SFP Ports (By Project), 2x NIC Module Slots, Max. 5 Pairs of LAN Bypass
- DDR4 2666MHz ECC (By CPU) or Non-ECC UDIMM, Max.128GB
- 2x MGMT, 1x Console, 1x LOM via IPMI Card (Optional), 2x USB 3.0, 4x Keypads
- 2x 2.5” HDD/SSD Bays, 1x M.2 2242, B+M Key (Optional)
- 2x PCI-E*4 FH/HL (Optional), 2x System Fans, 300W 1+1 ATX Redundant PSUs
NCA-5220是一款1U机架式网络设备，可定制与英特尔®Xeon®E、酷睿™i3、奔腾®、赛扬®和英特尔®C246的芯片组，具有丰富和灵活的配置，用于LAN端口、网卡扩展、存储和管理，为网络流量安全提供先进的网络功能、云计算和数据中心。
产品规格
| Platform | |
| CPU | Intel® Xeon® E or Core i3 or Pentium or Celeron Processor (Coffee Lake), Up to 6 Cores |
| Chipset | Intel® C246 |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR4 2666 MHz ECC (By CPU) or Non-ECC UDIMM |
| Memory Capacity | 128GB (32GB per DIMM) |
| Memory Socket | 4x 288-pin DIMM |
| Storage | |
| Storage | 2x 2.5” Bays, 1x M.2 2242, B+M Key (Optional) |
| I/O | |
| Default LAN | 8x Gbe RJ45 Intel® i210(SKU A), 4x Gbe RJ45 Intel® i350-AM4 or 4x SFP LAN Ports (By Project) |
| Bypass | Up to 5 Pairs of Gen3 Bypass (By SKU) |
| Console | 1x RJ45 |
| Management ports | 2x RJ45 |
| Display output | From OPMA Slot (Optional) |
| USB 3.0 | 2x USB 3.0 |
| IPMI via OPMA slot | 1x LOM via IPMI Card (Optional) |
| TPM | Yes (Optional) |
| Power and Mechanical | |
| Power input | AC Power Inlet on PSU |
| Type/Watt | 300W 1+1 ATX Redundant PSUs |
| Expansion | 2x PCIe*4 FH/HL (Optional) |
| Reset | Reset Button *1 |
| Processor cooling | Passive CPU Heatsink |
| System cooling | 2x Cooling Fans with Smart Fan |
| OS and Certifications | |
| Certifications | RoHS, CE/FCC Class A, UL |
| Physical and Environmental | |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 90% (non-condensing) |
| Dimensions (W x D x H) | 438 mm x 500 mm x 44 mm (17.24"x 19.69"x 1.73" ) |
| Weight | 7.1 kg (15.62 lbs) |
| Watchdog | Yes |
| Internal RTC | Yes |
订购信息
| NCA-5220A | Intel® Xeon E or Core i3 or Pentium or Celeron (up to 6 cores), 12Gbe RJ45, with 5 Pairs of Bypass, 2x RJ45 MGT, 2x NIC Module Slots, LCM, Redundant PSUs |
All product specifications are subject to change without prior notice
